EVI technology DC INVERTER

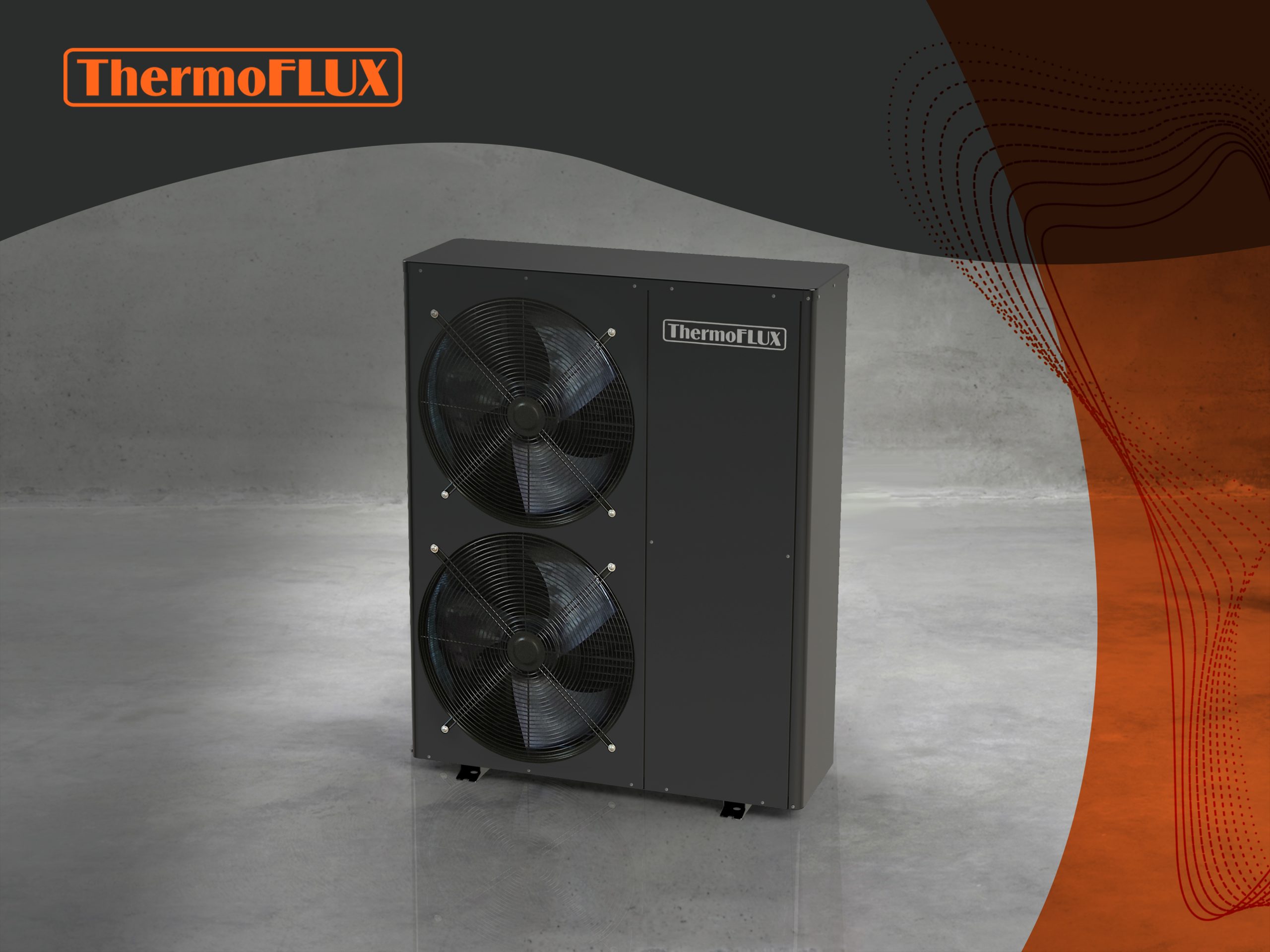

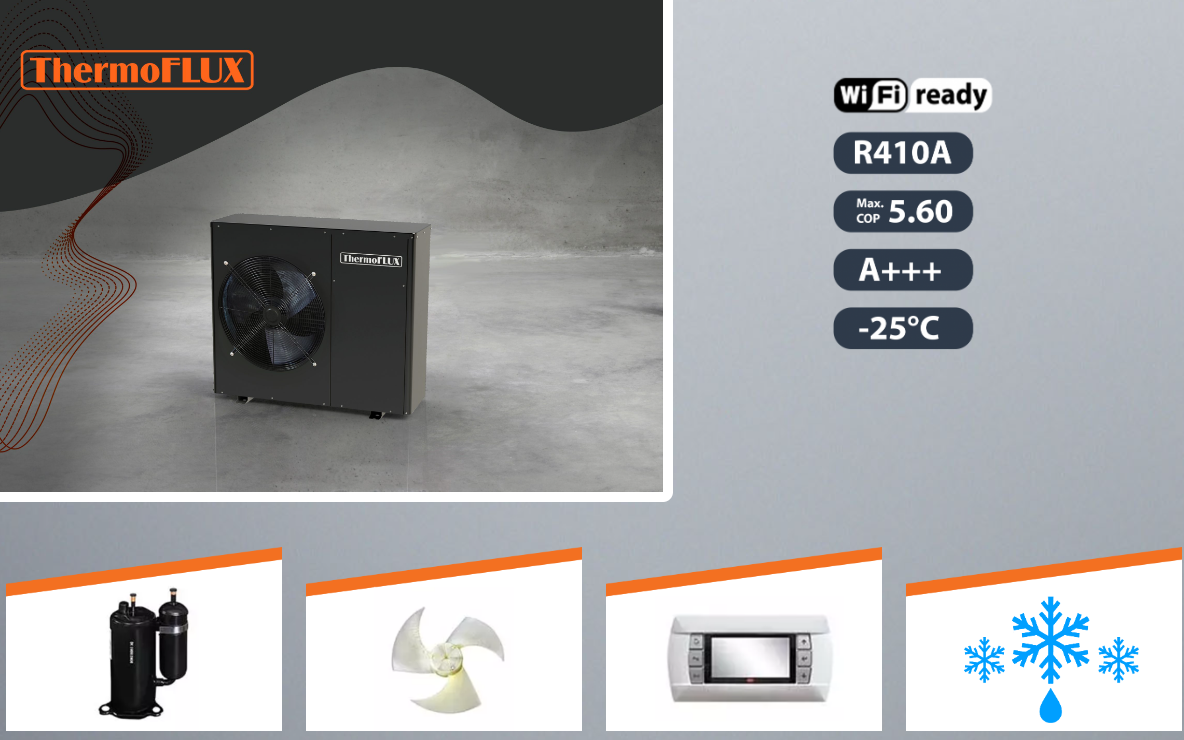

Heat pump - Split system
Split system

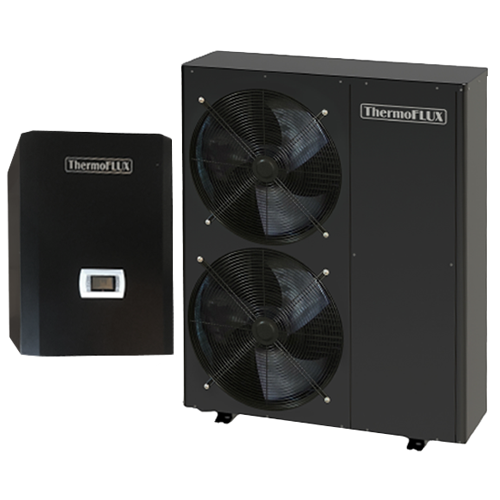

The heat pump consists of outdoor and indoor units. The indoor unit is equipped with a
circulation pump, electric heater and expansion vessel.
Working temperature from -25 ° C to 45 ° C
Twin rotary compressor by PANASONIC with improved flash injection technology (EVI),
works stably at temperatures down to -25 ° C.
Increased heating efficiency
To save energy, it automatically switches to a lower frequency mode when the temperature
reaches the set value
Super Low Noise
Thanks to DC Inverter “brushless” fans, our heat pumps operate with very low noise levels.
Intelligent defrosting
ThermoFLUX EVI DC inverter split type heat pump series adopt the intelligent defrosting
technology to make optimal decisions on whether it is time to defrost or not. In this way,
the unit is able to minimize energy consumption and improve customer satisfaction.
Models
We offer the split version of heat pumps in three rated powers (10 kW, 17 kW and 19 kW)
and the power supply can be single-phase or three-phase.
WI-FI Smart Management
The WIFI APP enables users to operate their units through a smart phone wherever and
whenever they are.
DESCRIPTION
- 6 operating modes: Heating / Cooling / DHW / Heating + DHW / Cooling + DHW / Automatic
- Wireless WiFi control
- Quiet operation
- Compact black design
- The intelligent CAREL controller
- Smart Control
- Intelligent Defrosting
SPECIFICATIONS
- Max Heating Capacity: 18.9kW
- Power Supply: 380-420/50/3
- Heater power: 3/6 kW
- Refrigerant :R410
- Refrigerant connections: 19/12.7
- Heating Power Input min./max. Wat =1584 / 4305
- Enery label (heating): A+++/A++
- COP: up to 5.6
- Circulating pump: ELECTRONIC GRUNDFOS UPM GEO 25-85 130
- Noise Level=62DB
- Water temperature – heating mode: 25~60°C
- Water temperature – cooling mode: 5~35°C
- External temperature range – cooling mode: -5~46°C
- External temperature range – hot water mode: -25~43°C
