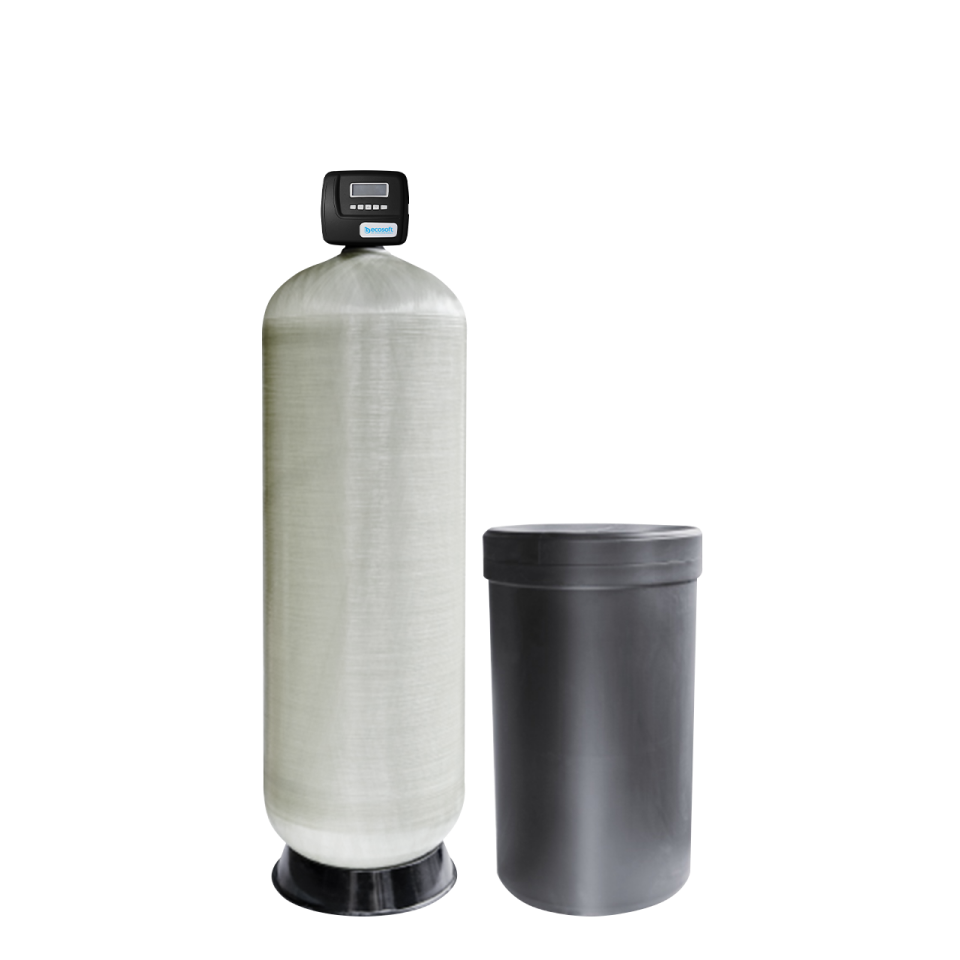

Filter SYSTEM - Omeknuvac Zbutes Uji me Kripe - Softener assy w/o resin 21x62. 1.25" CE valve

Set of equipment

1. CE 1.25" valve assembly (V125CEDME):

• CE 1.25" control valve
• Top stack distributor, 14 segments
• Connection kit 1.25''
• Power supply
• Injector, DLFC - for Ecomix and cation exchange resin
• Funnel
• Valve instruction manual

2. Pressure tank assembly

• Pressure tank 21x62, 4"
• Adaptor 4'' - 2.5''
• Riser DN 32 mm
• Bottom stack distributor, 15 segments

3. Brine tank

• Brine tank 24x50, 378 L
• Brine well assembly (brine valve, overflow set)
• Brine grid

CE CONTROL VALVE KEY FEATURES

• ‍Regeneration control by water volume: delayed regen., immediate, both
• Possibility to change the cycle of regeneration stages and their time range
• Multilanguage menu: English, German, French, Ukrainian
• Different setting modes are available:

          - Twin or duplex configurations

          - Up to 6 systems in the system controller

          - 2 external devices can simultaneously be connected

SPECIFICATIONS

• Water flow rate*

          - Service (pressure drop 1 bar): 7.7 m³/h

          - Backwash (pressure drop 1.7 bar): 7.3 m³/h

• Inlet, outlet: G 1.25″
• Drine: G 1″
• Brine line: G 3/8″
• Operating pressure: 2-6 bar
• Operating temperature: +4...+30 ^oC
• Electrical requirements: 230 V, 50 Hz
• Electrical power: 30 W
• Volume of pressure tank: 311 L
• Volume of brine tank: 378 L
• The volume of the rounded side: 25 L
• Dry system weight: 45 kg

* Only for Clack WS1.25 CE control valves includes meter, bypass, and 1.25" fitting kit

RECOMMENDED MEDIA VOLUME

• Ecomix Type C filter media: 150 L ***
• Ecomix Type A filter media: 150 L ***
• Ecomix Type P filter media: 150 L ***
• HCRS-S Strong acid cation exchange resin: 200...225 L
• PC002 Strong acid cation exchange resin: 200...225 L

The volume of filter material depends on its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com.

*** The amount of Ecomix can be increased by no more than 25 liters.

ACCESSORIES**

• V3006 WS1 Bypass Assembly
• V3009 WS1 Auxiliary Microswitch Assembly
• V3070FM Bypass shut-off valve during regeneration (no-Bypass valve) for 1" and 1.25" systems
• V3069MM-01 Water Specialist 1” & 1.25” Motorized Alternating Valve
• V3191-01 WS1 Bypass Vertical Adapter Assy

** Not included in the basic set. Can be installed as additional equipment.
